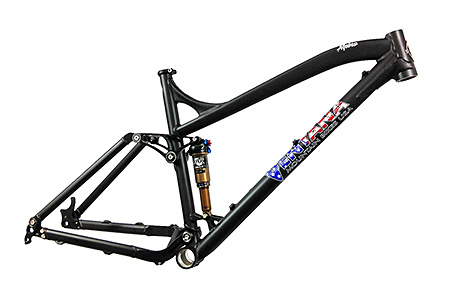

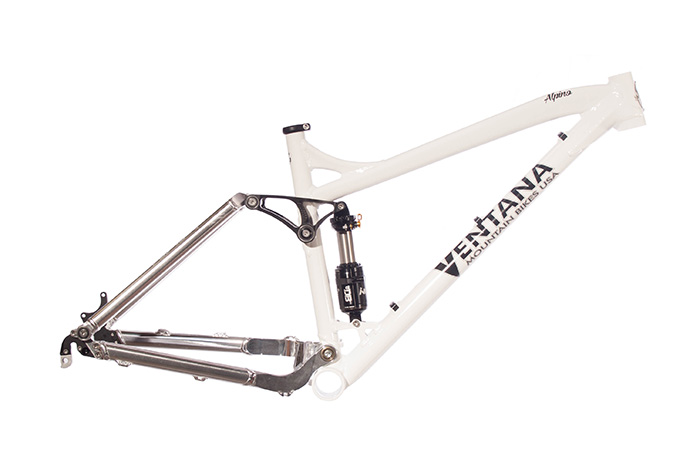

The full-suspension 27.5" trail bike

With 27.5" wheels and the 120mm rear travel, the Alpino trail bike hits the sweet spot in our 27.5er lineup. The suspension mapping is dialed for efficient climbing and epic descending. Features include interchangeable cable stops, and a lighter forged tapered head tube. Now you can rip the biggest mountain passes and flow the descents like a raging alpine stream with the Ventana Alpino as your trusty steed.

Price starts at $2,195.


  • Custom variable cross section, variable wall thickness, drawn, formed and shaped top tube
  • Asymmetric chain stays increase lateral stiffness and tire clearance and reduce weight

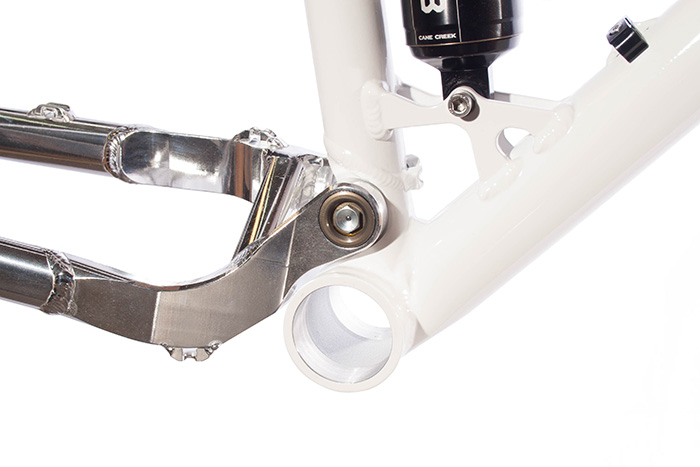

  • High-strength needle bearing main pivot with dual quad-ring seals and grease injection port
  • Dual set, quad sealed bearings at all other pivots

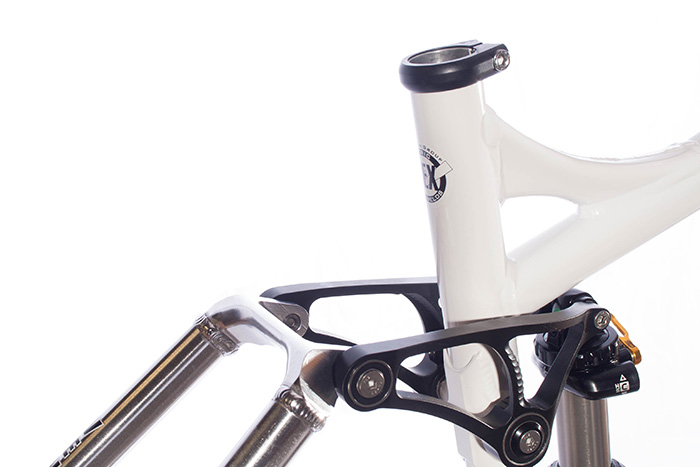

  • 3-D contour rockers increase lateral stiffness and reduce weight


Suspension 120mm rear travel

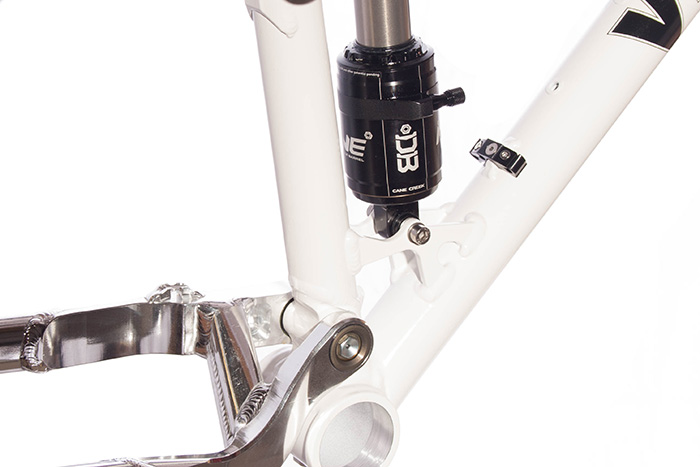

Rear shock Cane Creek DB Inline

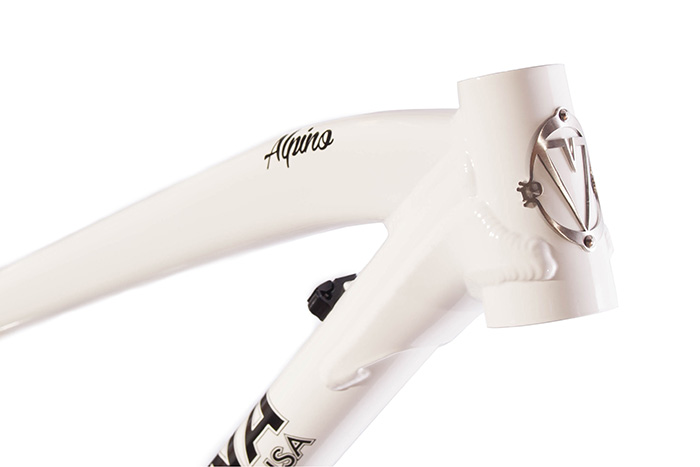

Head tube Tapered head tube uses external mixed headset (34mm upper x 44mm lower)
Fork 120mm tapered steerer tube fork compatibility
Seat post 30.9mm diameter
Bottom bracket PF30

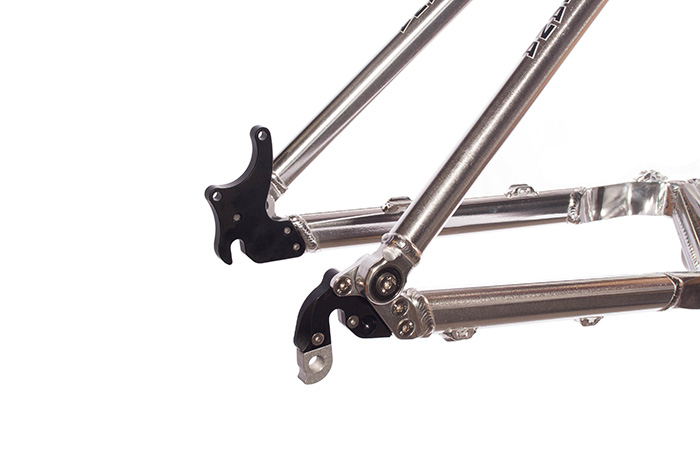

Dropouts Replaceable 142x12mm thru axle dropouts
Front derailleur Fits 34.9mm high-clamp, bottom pull, bottom swing


Current Stock Colors:

Carbon Black

Sky White

Custom Upgrades:

  • Alternate level 1 color: + $55
  • Alternate level 2 color: + $95
  • Powdercoated rear triangle (full suspension frames only): + $75
  • Custom color: + $250


Stock Sizes: 15", 17", 19", 21"

Download our frame size chart.

We also offer three levels of custom geometry.


Every frame is backed by our solid warranty and our great customer service.
