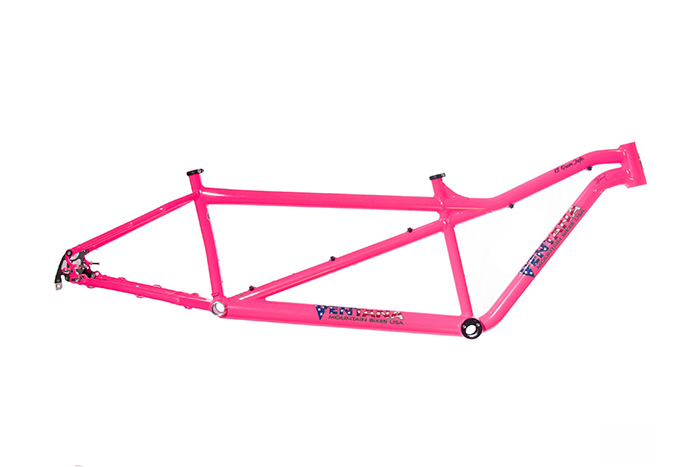

El Gran Jefe

Features

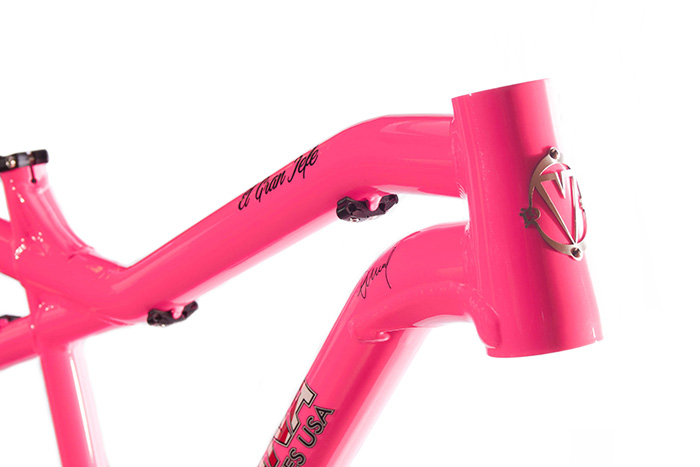

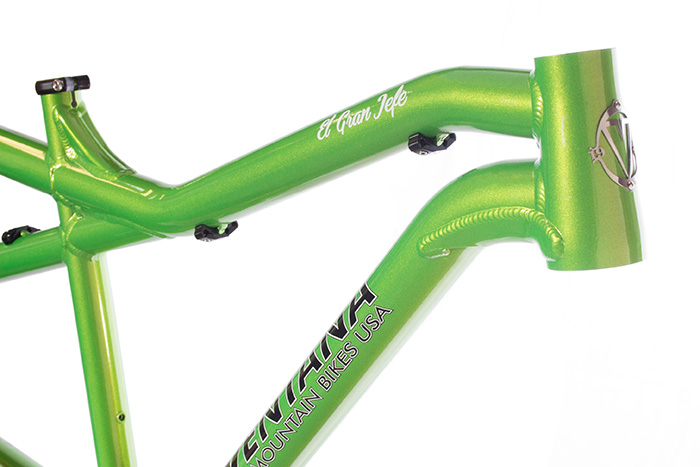

• Tapered head tube (1-1/8” to 1.5”) uses InSet or Zero Stack headset (44mmx56mm)
• Optimized for 483mm A-C fork length

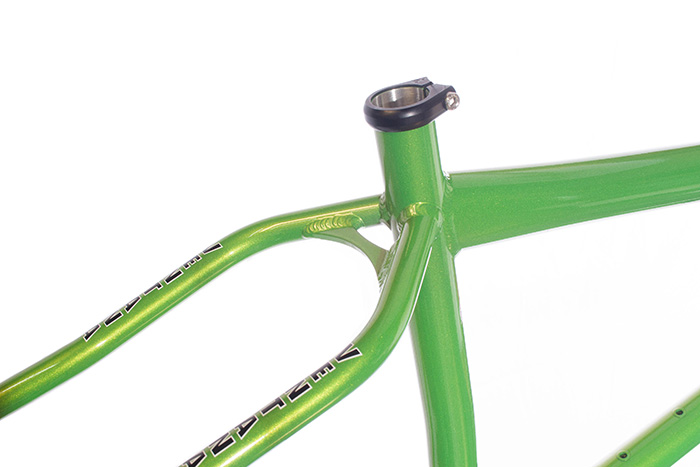

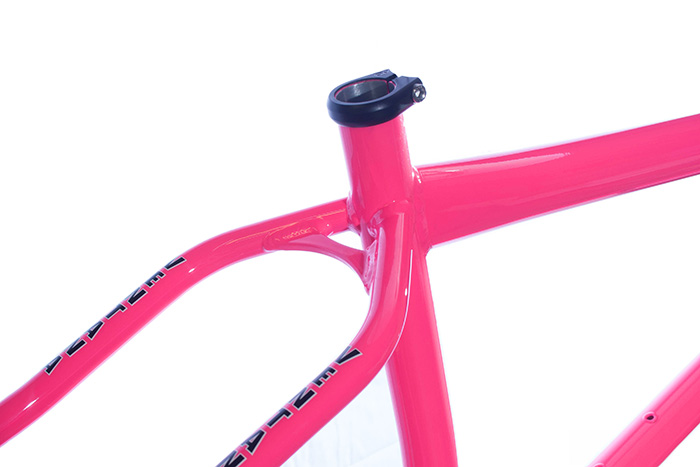

• 27.2mm seat post diameter

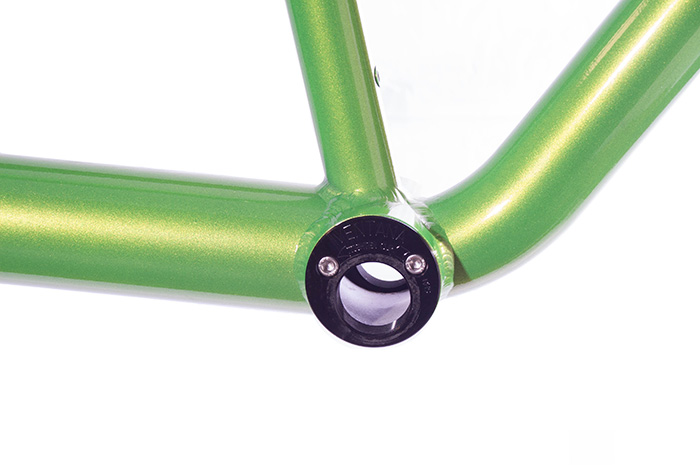

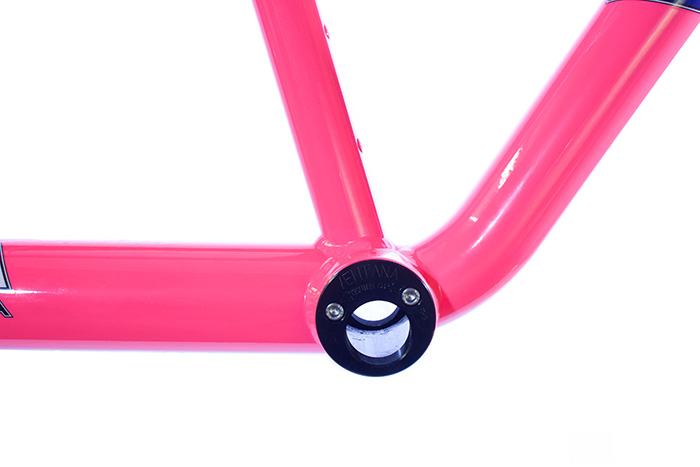

• 100mm Ventana eccentric captain’s BB

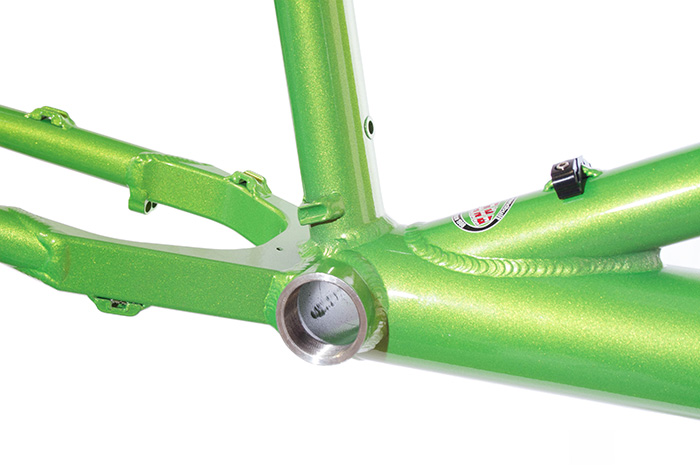

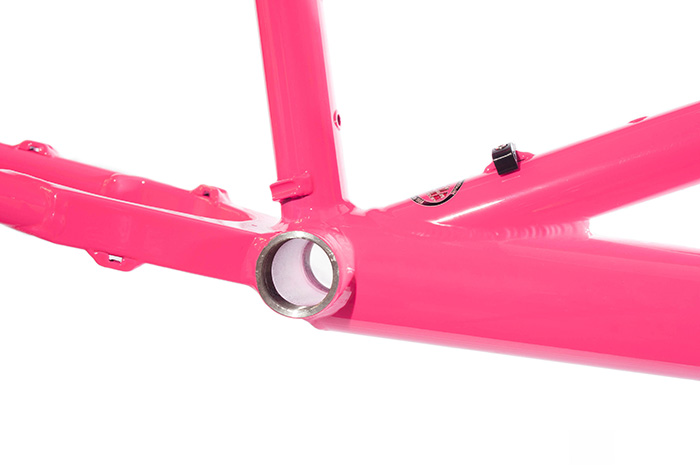

• 100mm English threaded stocker’s BB
• Removable clamp-style cable stops for front & rear derailleur, and rear brake

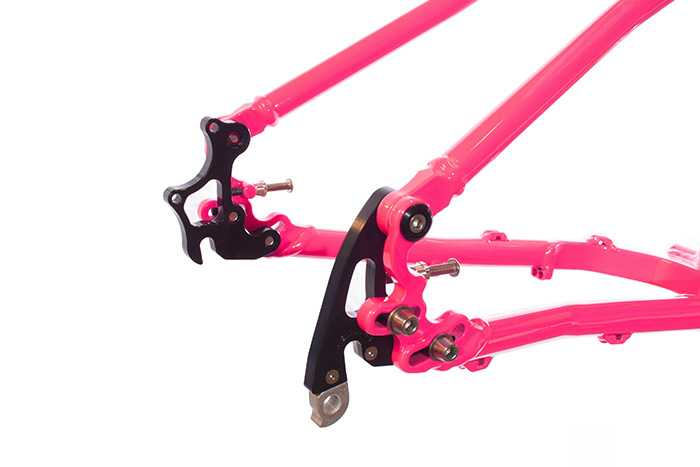

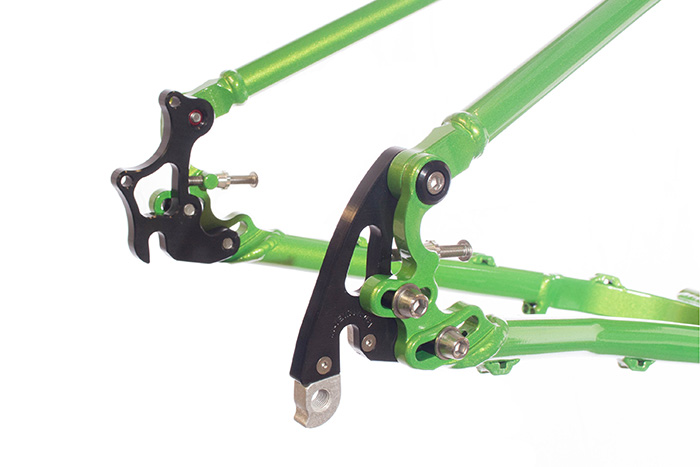

• Ventana proprietary three bolt swinging adjustable dropouts with replaceable derailleur hanger
• Available in 170mm or190mm rear axle widths
• Chainstay yoke provides ample clearance for large volume tires (4.8” tires on 100mm rims)
• Compatible with up to 120mm travel suspension fork
• Fits 27.5+ and 29+ wheels

Options

• 177x12mm or 197x12mm thru axle dropouts - includes axle bolt +$150
• Fatzilla Fat Tandem Fork 150x15mm. Stock color: Carbon black + $550

Paint

Current Stock Colors:

Custom Upgrades:

• Alternate level 1 color: + $75
• Alternate level 2 color: + $125
• Custom color: + $250

Sizes

Stock Sizes: Small (18/16"), Large (20,17")

Download our frame size chart.

We also offer three levels of custom geometry.

Warranty

Every frame is backed by our solid warranty and our great customer service.
