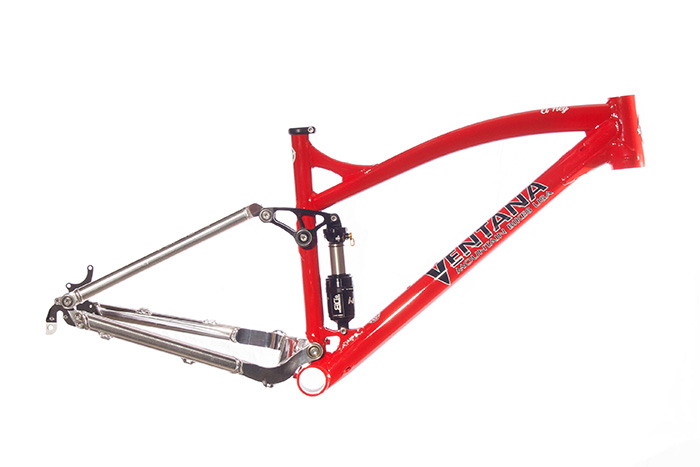

El Rey

Features

• Oversized 50mm down tube
• Custom variable cross section, variable wall thickness, drawn, formed and shaped top tube
• Asymmetric chain stays increase lateral stiffness and tire clearance and reduce weight

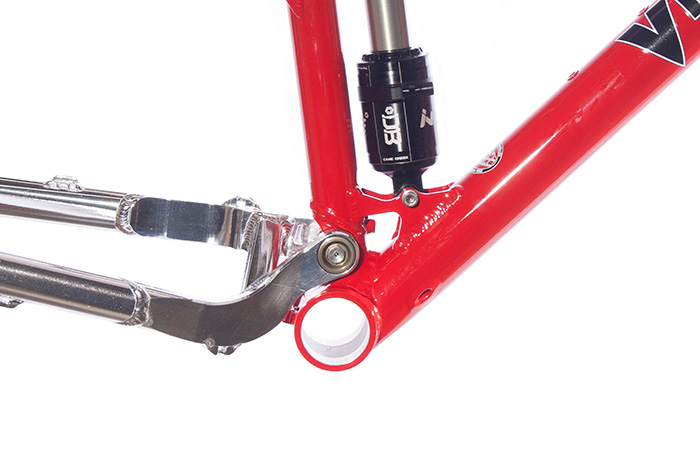

• High-strength needle bearing main pivot with dual quad-ring seals and grease injection port
• Dual set, quad sealed bearings at all other pivots

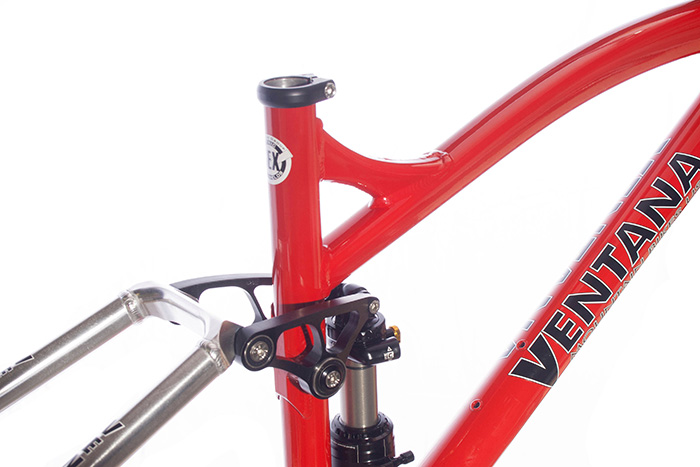

• 3-D contour rockers increase lateral stiffness and reduce weight

Details

Suspension	102mm rear suspension trave
Rear shock	Cane Creek DB Inline

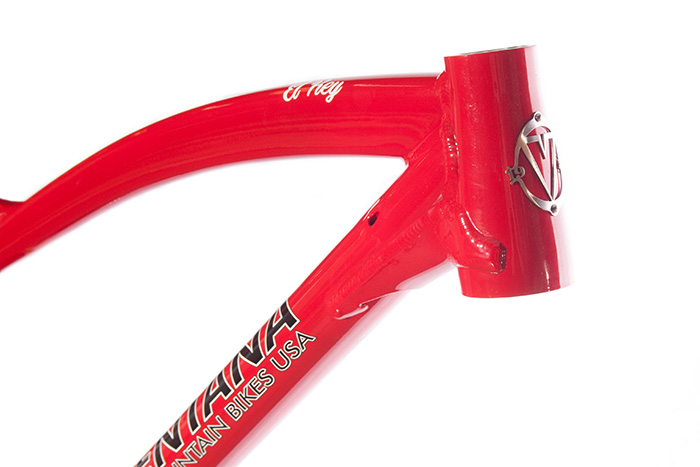

Head tube	Tapered for InSet or Zero Stack headset (44mmx56mm)
Fork	100mm fork compatibility
Seat post	30.9mm diameter
Bottom bracket	PF30

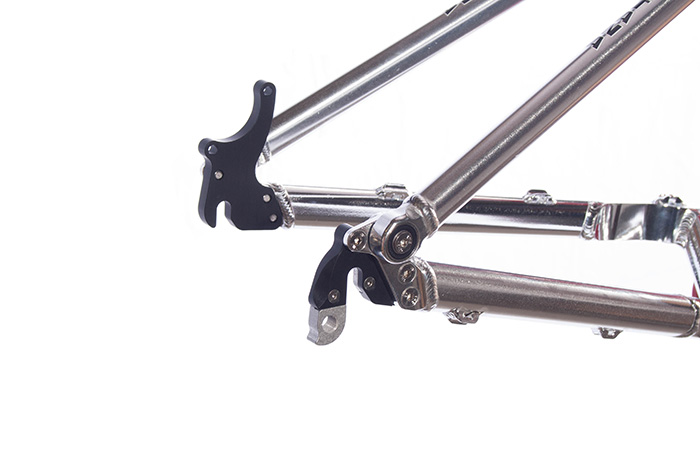

Dropouts	Replaceable 142x12mm thru axle dropouts
Front derailleur	Fits 34.9mm high-clamp, bottom pull, bottom swing
Cable routing	Internal

Paint

Current Stock Colors:

Custom Upgrades:

• Alternate level 1 color: + $55
• Alternate level 2 color: + $95
• Powdercoated rear triangle (full suspension frames only): + $75
• Custom color: + $250

Sizes

Stock Sizes: 15", 17", 19", 21", 23", 25"

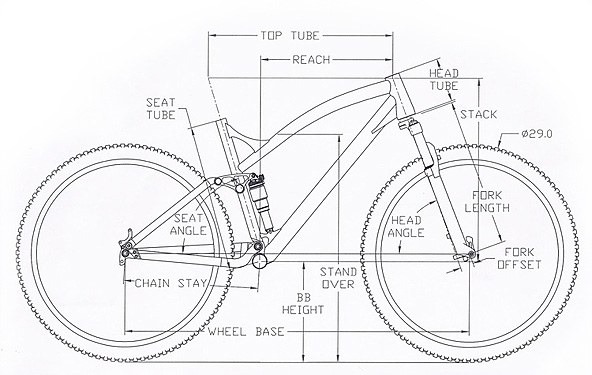

Download our frame size chart.

We also offer three levels of custom geometry.

Warranty

Every frame is backed by our solid warranty and our great customer service.
